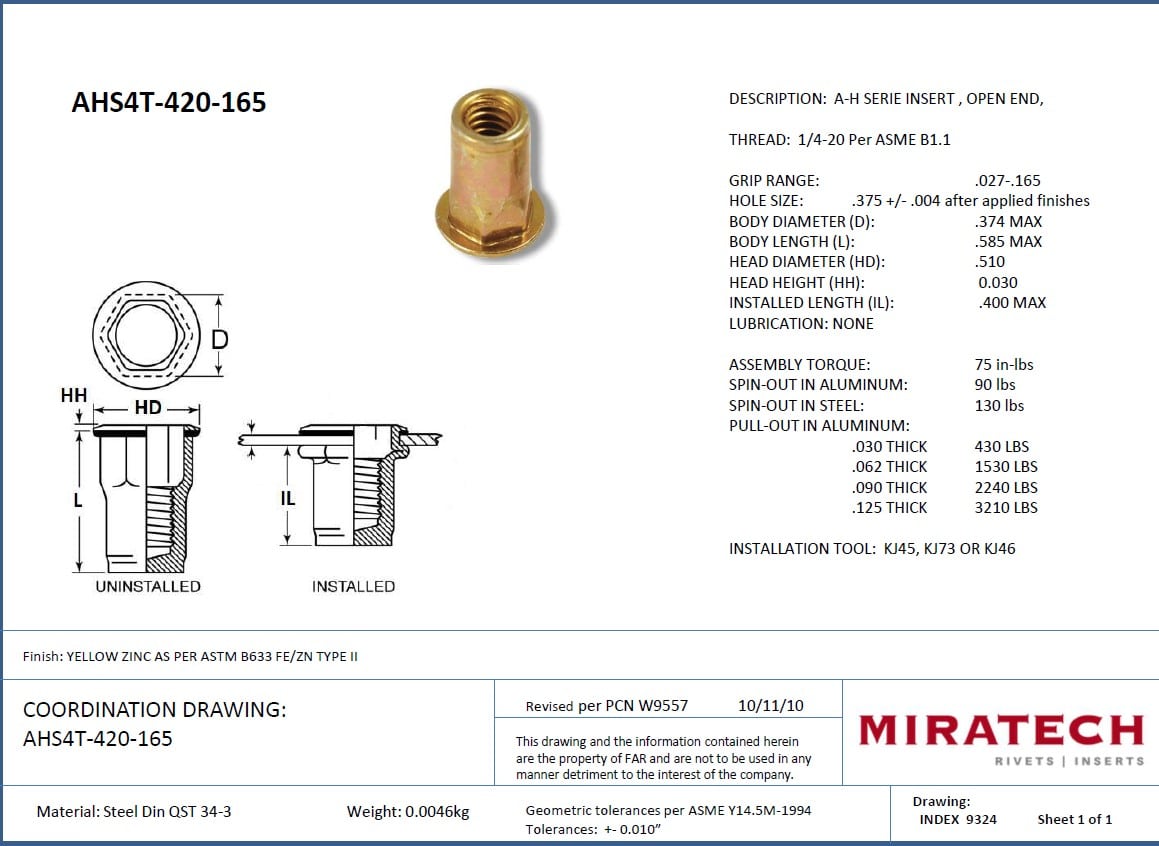

AHS4T-420-165 A-H serie insert, open end, thread 1/4-20

Description

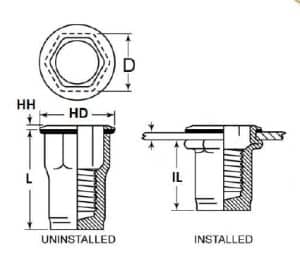

The AHS4T-420-165 is a Rivet Nut  A-H Series™ Threaded Hex Insert features a radius corner hex body. When installed into a corresponding hex hole, the radius corners of the A-H Insert expand and fill the hole corners providing exceptional resistance to spinning in the panel. It also has a yellow zinc finish.

Thread: 1/4-20

Grip range: 0.027-0.165″

Hole size: 0.375 +/- 0.004 after applied finishes
